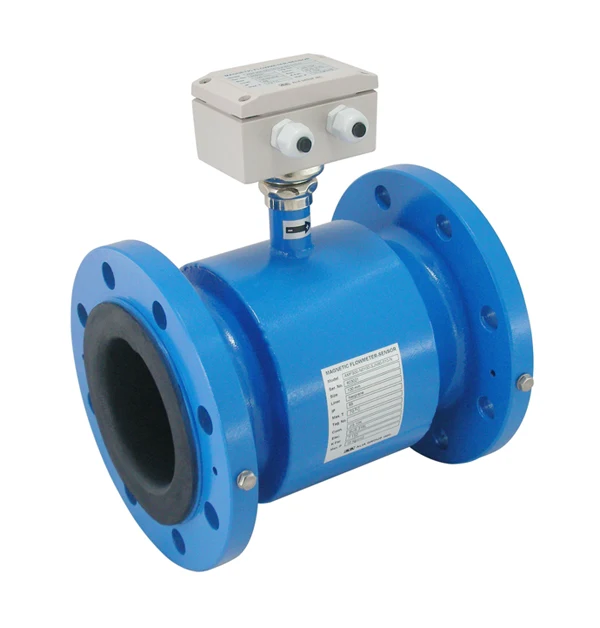

AMF900
The AMF900 electromagnetic sensor is adapted to the AMC2100/AMC3100 electronic units. It is available in sizes from 6 mm up to 2000 mm. The sensor has no moving parts and therefore does not affect the flow condition in the pipe system. Electronic units and sensors can be optionally combined for best performance.
- Measurement range: 0 - 12 m/s, max
- Housing material: Carbon steel/Lacquer alt. Stainless steel* See table in pdf.
- Lining: Choose between FEP, Neoprene, PEL or PTFE
- Electrodes: Stainless steel 316, Hastelloy B-C, Titanium, Tantalum, Tungsten, Platinum
- Ambient temperature: -25 to +60 °C
- Flange type: DIN PN 10, 16, 25, 40
- Accuracy: ± 0.2%
